(스프링 MVC 1편) 2. 서블릿
개발/스프링 MVC

(스프링 MVC 1편) 2. 서블릿

2023. 3. 10. 13:24

이 글은 김영한 님의 스프링 MVC 1편 수강 후 정리한 글입니다.

(https://www.inflearn.com/course/%EC%8A%A4%ED%94%84%EB%A7%81-mvc-1/dashboard)



스프링 MVC 1편 - 백엔드 웹 개발 핵심 기술 - 인프런 | 강의

웹 애플리케이션을 개발할 때 필요한 모든 웹 기술을 기초부터 이해하고, 완성할 수 있습니다. 스프링 MVC의 핵심 원리와 구조를 이해하고, 더 깊이있는 백엔드 개발자로 성장할 수 있습니다., -

www.inflearn.com


프로젝트 생성

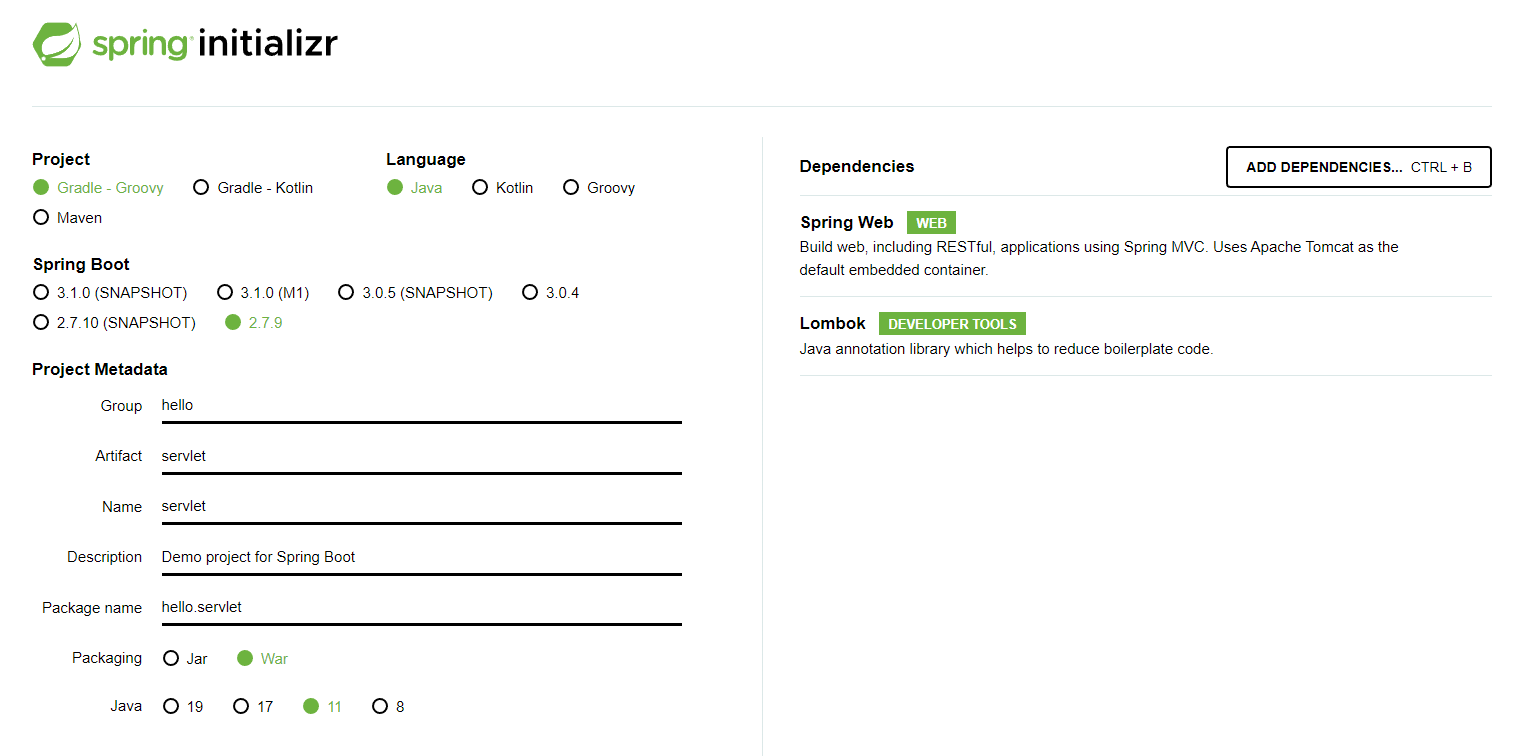

1. Spring initializr로 스프링 프로젝트 생성

스프링 부트 스타터 사이트(https://start.spring.io)로 이동해서 다음과 같이 스프링 프로젝트를 생성한다.

※ Packaging는 Jar가 아니라 JSP를 실행하기 위해서 War를 선택해야 한다.



프로젝트에서 기본 메인 클래스(ServletApplication.main()) 실행 후 http://localhost:8080에 접속했을 때, Whitelabel Error Page가 나오면 정상 동작하는 것이다.



2. IntelliJ Gradle 대신에 자바 직접 실행 설정

File -> Setting -> Build, Execution, Deployment -> Build Tools -> Gradle 순으로 설정에 접속하여
Build and run using: Gradle IntelliJ IDEA
Run tests using: Gradle IntelliJ IDEA

위와 같이 변경한다.



3. 롬복 적용

1. File -> Setting -> plugin -> lombok 검색 실행 (재시작)
2. File -> Setting -> Annotation Processors 검색 -> Enable annotation processing 체크 (재시작)
3. 임의의 테스트 클래스를 만들고 @Getter, @Setter 확인

위와 같은 과정을 거쳐 롬복을 프로젝트에 적용한다.



4. Postman 설치

Postman 사이트(https://www.postman.com/downloads)에서 Postman을 다운로드하고 설치한다.

Hello 서블릿

1. 스프링 부트 서블릿 환경 구성

스프링 부트는 직접 서블릿을 등록하여 사용할 수 있도록 @ServletComponentScan을 지원한다.

사용법은 아래와 같이 프로젝트 기본 메인 클래스에 @ServletComponentScan을 추가하면 된다.

그러면 하위 패키지를 모두 스캔하여 자동으로 서블릿을 실행할 수 있도록 등록해 준다.

// ServletApplication.java
@ServletComponentScan // 서블릿 자동 등록
@SpringBootApplication
public class ServletApplication {

   public static void main(String[] args) {
      SpringApplication.run(ServletApplication.class, args);
   }

}



2. 서블릿 등록하기

다음으로 실제 동작하는 서블릿 코드를 등록해 보자.

hello.servlet.basic.HelloServlet을 다음과 같이 생성한다.

// HelloServlet.java
@WebServlet(name = "helloServlet", urlPatterns = "/hello")
public class HelloServlet extends HttpServlet {
    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        System.out.println("HelloServlet.service");
        System.out.println("request = " + request);
        System.out.println("response = " + response);

        String username = request.getParameter("username");
        System.out.println("username = " + username);

        response.setContentType("text/plan");
        response.setCharacterEncoding("utf-8");
        response.getWriter().write("hello " + username);
    }
}

위의 코드는 HTTP 요청을 통해  username이라는 이름의 Parameter로 들어온 값을 username 변수에 저장하고, 이를 출력하는 코드이다.

@WebServlet 서블릿 애노테이션 : name - 서비스 이름, urlPatterns - URL 매핑

HTTP 요청을 통해 매핑된 URL(http://localhost:8080/hello?username=example)이 호출되면 서블릿 컨테이너는 위의 service 메서드를 실행한다. 그리고 다음과 같이 콘솔에 출력된다.

HelloServlet.service
request = org.apache.catalina.connector.RequestFacade@xxxxxxxx
response = org.apache.catalina.connector.ResponseFacade@xxxxxxxx
username = example

3. HTTP 요청 메시지 로그로 확인하기

application.properties에 다음 설정을 추가한다.

서버 재시작 후에 새롭게 요청해 보면 아래와 같이 서버가 받은 HTTP 요청 메시지를 콘솔에서 출력하는 것을 확인할 수 있다.

[GET /hello?username=example HTTP/1.1
Host: localhost:8080
Connection: keep-alive
...
]

4. Welcome 페이지 추가

webapp 경로에 index.html을 두면 http://localhost:8080 호출 시 index.html 페이지가 열린다.

<!--index.html-->
<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<ul>
    <li><a href="basic.html">서블릿 basic</a></li>
</ul>
</body>
</html>

welcome Page(index.html)

welcome 페이지를 완성하였으면, 이번 장에서 사용할 basic.html 파일을 같은 위치에 생성한다.

<!--basic.html-->
<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<ul>
    <li>hello 서블릿
        <ul>
            <li><a href="/hello?username=servlet">hello 서블릿 호출</a></li>
        </ul>
    </li>
    <li>HttpServletRequest
        <ul>
            <li><a href="/request-header">기본 사용법, Header 조회</a></li>
            <li>HTTP 요청 메시지 바디 조회
                <ul>
                    <li><a href="/request-param?username=hello&age=20">GET -
                        쿼리 파라미터</a></li>
                    <li><a href="/basic/hello-form.html">POST - HTML Form</a></
                    li>
                    <li>HTTP API - MessageBody -> Postman 테스트</li>
                </ul>
            </li>
        </ul>
    </li>
    <li>HttpServletResponse
        <ul>
            <li><a href="/response-header">기본 사용법, Header 조회</a></li>
            <li>HTTP 응답 메시지 바디 조회
                <ul>
                    <li><a href="/response-html">HTML 응답</a></li>
                    <li><a href="/response-json">HTTP API JSON 응답</a></li>
                </ul>
            </li>
        </ul>
    </li>
</ul>
</body>
</html>

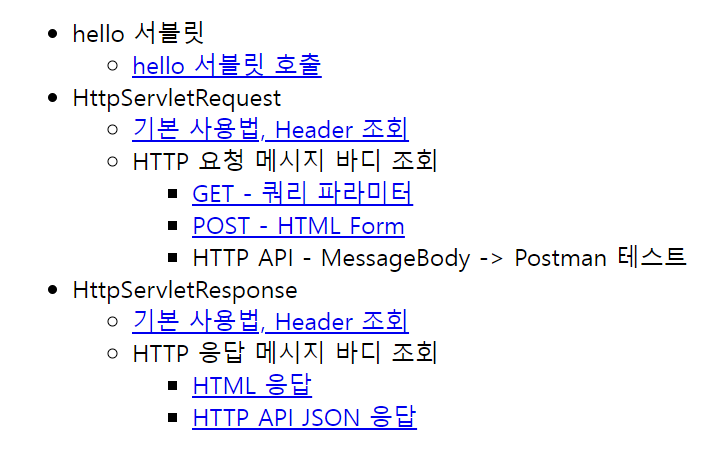

basic.html 화면

HttpServletRequest

1. 개요

서블릿은 개발자가 HTTP 요청 메시지를 편리하게 사용할 수 있도록 개발자 대신 HTTP 요청 메시지를 파싱 한다. 그리고 그 결과를 HttpServletRequest 객체에 담아서 제공한다.

그 외에도 해당 HTTP 요청이 끝날 때까지 유지되는 임시 저장소, 세션 관리 같은 부가적인 기능도 제공한다.

※ HTTP 스펙이 제공하는 요청, 응답 메시지 자체를 이해해야 한다.



2. 기본 사용법

hello.servlet.basic.request.RequestHeaderServlet을 다음과 같이 생성한다.

// RequestHeaderServlet.class
@WebServlet(name = "requestHeaderServlet", urlPatterns = "/request-header")
public class RequestHeaderServlet extends HttpServlet {

    // protected로 된 service 메소드를 Ctrl+O를 사용하여 Override
    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        printStartLine(request);
        printHeaders(request);
        printHeaderUtils(request);
        printEtc(request);
    }

    // start-line 정보
    private static void printStartLine(HttpServletRequest request) {
        System.out.println("--- REQUEST-LINE - start ---");
        System.out.println("request.getMethod() = " + request.getMethod()); //GET
        System.out.println("request.getProtocol() = " + request.getProtocol()); //HTTP/1.1
        System.out.println("request.getScheme() = " + request.getScheme()); //http
        // http://localhost:8080/request-header
        System.out.println("request.getRequestURL() = " + request.getRequestURL());
        // /request-header
        System.out.println("request.getRequestURI() = " + request.getRequestURI());
        //username=hi
        System.out.println("request.getQueryString() = " + request.getQueryString());
        System.out.println("request.isSecure() = " + request.isSecure()); //https 사용 유무
        System.out.println("--- REQUEST-LINE - end ---");
        System.out.println();
    }

    // 헤더 정보
    private void printHeaders(HttpServletRequest request) {
        System.out.println("--- Headers - start ---");
        /* 과거의 사용법
        Enumeration<String> headerNames = request.getHeaderNames();
        while (headerNames.hasMoreElements()) {
        String headerName = headerNames.nextElement();
        System.out.println(headerName + ": " + request.getHeader(headerName));
        }
        */
        request.getHeaderNames().asIterator()
                .forEachRemaining(headerName -> System.out.println(headerName + ": "
                        + request.getHeader(headerName)));
                        System.out.println("--- Headers - end ---");
        System.out.println();
    }

    //Header 편리한 조회
    private void printHeaderUtils(HttpServletRequest request) {
        System.out.println("--- Header 편의 조회 start ---");
        System.out.println("[Host 편의 조회]");
        System.out.println("request.getServerName() = " +
                request.getServerName()); //Host 헤더
        System.out.println("request.getServerPort() = " +
                request.getServerPort()); //Host 헤더
        System.out.println();
        System.out.println("[Accept-Language 편의 조회]");
        request.getLocales().asIterator()
                .forEachRemaining(locale -> System.out.println("locale = " +
                        locale));
        System.out.println("request.getLocale() = " + request.getLocale());
        System.out.println();
        System.out.println("[cookie 편의 조회]");
        if (request.getCookies() != null) {
            for (Cookie cookie : request.getCookies()) {
                System.out.println(cookie.getName() + ": " + cookie.getValue());
            }
        }
        System.out.println();
        System.out.println("[Content 편의 조회]");
        System.out.println("request.getContentType() = " +
                request.getContentType());
        System.out.println("request.getContentLength() = " +
                request.getContentLength());
        System.out.println("request.getCharacterEncoding() = " +
                request.getCharacterEncoding());
        System.out.println("--- Header 편의 조회 end ---");
        System.out.println();
    }

    //기타 정보
    private void printEtc(HttpServletRequest request) {
        System.out.println("--- 기타 조회 start ---");
        System.out.println("[Remote 정보]");
        System.out.println("request.getRemoteHost() = " +
                request.getRemoteHost()); //
        System.out.println("request.getRemoteAddr() = " +
                request.getRemoteAddr()); //
        System.out.println("request.getRemotePort() = " +
                request.getRemotePort()); //
        System.out.println();
        System.out.println("[Local 정보]");
        System.out.println("request.getLocalName() = " +
                request.getLocalName()); //
        System.out.println("request.getLocalAddr() = " +
                request.getLocalAddr()); //
        System.out.println("request.getLocalPort() = " +
                request.getLocalPort()); //
        System.out.println("--- 기타 조회 end ---");
        System.out.println();
    }
}

결과는 다음과 같다.

--- REQUEST-LINE - start ---
request.getMethod() = GET
request.getProtocol() = HTTP/1.1
request.getScheme() = http
request.getRequestURL() = http://localhost:8080/request-header
request.getRequestURI() = /request-header
request.getQueryString() = null
request.isSecure() = false
--- REQUEST-LINE - end ---

--- Headers - start ---
host: localhost:8080
connection: keep-alive
cache-control: max-age=0
sec-ch-ua: "Chromium";v="110", "Not A(Brand";v="24", "Google Chrome";v="110"
sec-ch-ua-mobile: ?0
sec-ch-ua-platform: "Windows"
upgrade-insecure-requests: 1
user-agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/110.0.0.0 Safari/537.36
accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.7
sec-fetch-site: none
sec-fetch-mode: navigate
sec-fetch-user: ?1
sec-fetch-dest: document
accept-encoding: gzip, deflate, br
accept-language: ko-KR,ko;q=0.9
--- Headers - end ---

--- Header 편의 조회 start ---
[Host 편의 조회]
request.getServerName() = localhost
request.getServerPort() = 8080

[Accept-Language 편의 조회]
locale = ko_KR
locale = ko
request.getLocale() = ko_KR

[cookie 편의 조회]

[Content 편의 조회]
request.getContentType() = null
request.getContentLength() = -1
request.getCharacterEncoding() = UTF-8
--- Header 편의 조회 end ---

--- 기타 조회 start ---
[Remote 정보]
request.getRemoteHost() = 0:0:0:0:0:0:0:1
request.getRemoteAddr() = 0:0:0:0:0:0:0:1
request.getRemotePort() = 50306

[Local 정보]
request.getLocalName() = 0:0:0:0:0:0:0:1
request.getLocalAddr() = 0:0:0:0:0:0:0:1
request.getLocalPort() = 8080
--- 기타 조회 end ---

이렇게 HttpServletRequest를 통해서 HTTP 요청 메시지의 start-line, header 등에 대한 정보 조회를 할 수 있다.

Http 요청 데이터

1. 개요

HTTP 요청 메시지를 통해 클라이언트에서 서버로 데이터를 전달하는 방법은 주로 3가지가 있다.

  • GET - 쿼리 파라미터

메시지 바디 없이, URL의 쿼리 파라미터에 데이터를 포함해서 전달하는 방법이다.

검색, 필터, 페이징 등에서 많이 사용하는 방식이다.

ex) /url?paramName=value&paramName2=value2

  • POST - HTML Form

메시지 바디에 username=hello&age=20와 같이 쿼리 파라미터 형식으로 전달하는 방법이다. (content-type: application/x-www-form-urlencoded)
예) HTML Form을 사용한 회원 가입, 상품 주문 등

  • HTTP Message Body

HTTP API에서 주로 사용하는 방식이며, JSON, XML, TEXT를 사용하여 데이터를 전달할 수 있다.
ex) POST, PUT, PATCH 방식



2. GET 쿼리 파라미터

클라이언트에서 서버로 username=hello, age=20라는 정보를 전송한다고 하자.

메시지 바디 없이 URL의 쿼리 파라미터에 포함하여 전송할 것이다.

쿼리 파라미터는 url 이후에 '?'를 시작으로 보낼 수 있으며 추가 파라미터는 '&'을 사용하여 보내면 된다.

ex) /url?paramName=value&paramName2=value2



서버에서는 HttpServletRequest가 제공하는 메서드들을 사용하여 편리하게 조회할 수 있다.

request.getParameter("username"); // 단일 파라미터 조회
request.getParameterNames(); // 파라미터 이름들 모두 조회
request.getParameterMap(); // 파라미터를 Map으로 조회
String[] usernames = request.getParameterValues("username"); // 복수 파라미터 조회

이들을 직접 사용해 보자.

hello.servlet.basic.request.RequestParamServlet을 다음과 같이 생성한다.

// RequestParamServlet.class
/**
 1. 파라미터 전송 기능
 http://localhost:8080/request-param?username=hello&age=20

 2. 동일한 파라미터 전송 가능
 * http://localhost:8080/request-param?username=hello&username=kim&cho=20
 **/
@WebServlet(name = "requestParamServlet", urlPatterns = "/request-param")
public class RequestParamServlet extends HttpServlet {
    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        System.out.println("[전체 파라미터 조회] - start");
        /* 옛날 방식
        Enumeration<String> parameterNames = request.getParameterNames();*/
        request.getParameterNames().asIterator().forEachRemaining(paramName -> System.out.println(paramName + " = " +
                request.getParameter(paramName)));
        System.out.println("[전체 파라미터 조회] - end");

        System.out.println();

        System.out.println("[단일 파라미터 조회] - start");
        String username = request.getParameter("username");
        System.out.println("username = " + username);
        String age = request.getParameter("age");
        System.out.println("age = " + age);
        System.out.println("[단일 파라미터 조회] - end");

        System.out.println();

        System.out.println("[이름이 같은 복수 파라미터 조회] - start");
        for (String name : request.getParameterValues("username")) {
            System.out.println("name = " + name);
        }
        System.out.println("[이름이 같은 복수 파라미터 조회] - end");

        response.getWriter().write("ok"); // 화면에 ok를 표시하기 위함
    }
}

결과는 다음과 같다.

[전체 파라미터 조회] - start
username = hello
age = 20
[전체 파라미터 조회] - end

[단일 파라미터 조회] - start
username = hello
age = 20
[단일 파라미터 조회] - end

[이름이 같은 복수 파라미터 조회] - start
name = hello
name = cho
[이름이 같은 복수 파라미터 조회] - end

username=hello&username=cho와 같이 파라미터 이름은 하나인데, 값이 중복이라면 request.getParameter()를 사용해서는 안된다. 하나의 파라미터 이름에 대해서 단 하나의 값만 있을 때 사용해야 한다.
중복일 때는 request.getParameterValues()를 사용해야 한다. 참고로 중복일 때 request.getParameter()를 사용하면 request.getParameterValues()의 첫 번째 값(첫 번째로 나타난 값)을 반환한다.



3. HTTP 요청 데이터 - Post Html Form

이번에는 HTML의 Form을 사용해서 클라이언트에서 서버로 데이터를 전송해 보자.

src/main/webapp/basic/hello-form.html 파일을 다음과 같이 생성한다.

<!--hello-form.html-->
<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<form action="/request-param" method="post">
    username: <input type="text" name="username" />
    age: <input type="text" name="age" />
    <button type="submit">전송</button>
</form>
</body>
</html>

http://localhost:8080/basic/hello-form.html로 접속하면 다음과 같은 Form을 확인할 수 있다.

여기서 전송 버튼을 눌러 POST HTML Form을 전송하면 웹 브라우저는 다음 형식으로 HTTP 메시지를 만든다.

웹 브라우저 개발자 모드(F12)로 확인할 수 있다.
요청 URL: http://localhost:8080/request-param
content-type: application/x-www-form-urlencoded
message body: username=xxxx&age=xx



application/x-www-form-urlencoded 형식 또한 앞서 GET - 쿼리 파라미터 형식과 같다.
따라서 앞에서 만든 쿼리 파라미터 조회 메서드를 그대로 사용하면 된다.
클라이언트 입장에서는 두 방식에 차이가 있지만, 서버 입장에서는 둘의 형식이 동일하기에 request.getParameter()로 편리하게 구분 없이 조회할 수 있다.
정리하면 request.getParameter()는 GET URL 쿼리 파라미터 형식도 지원하고, POST HTML Form
형식도 둘 다 지원한다.

※ content-type은 HTTP 메시지 바디의 데이터 형식을 지정하는 것이다.

그렇기에 GET URL 쿼리 파라미터 형식으로 데이터를 전달할 때는 HTTP 메시지 바디를 사용하지 않으므로 content-type이 없고, POST HTML FORM 형식일 때는 HTTP 메시지 바디에 데이터를 포함해서 보내므로 content-type이 지정되어 있다.



4. HTTP 요청 데이터 - API 메시지 바디 - 단순 텍스트

HTTP 메시지 바디의 데이터를 InputStream을 사용해서 직접 읽을 수 있다.

이를 직접 사용해 보자.

hello.servlet.basic.request.RequestBodyStringServlet을 다음과 같이 생성한다.

// RequestBodyStringServlet
@WebServlet(name = "requestBodyStringServlet", urlPatterns = "/request-body-string")
public class RequestBodyStringServlet extends HttpServlet {
    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        ServletInputStream inputStream = request.getInputStream();

        //Byte 코드를 읽을 수 있게 Charset 지정
        String messageBody = StreamUtils.copyToString(inputStream, StandardCharsets.UTF_8);

        System.out.println("messageBody = " + messageBody);

        response.getWriter().write("ok");
    }
}

inputStream은 byte 코드를 반환한다. byte 코드를 우리가 읽을 수 있는 문자(String)로 보려면 문자표(Charset)를 지정해주어야 한다.

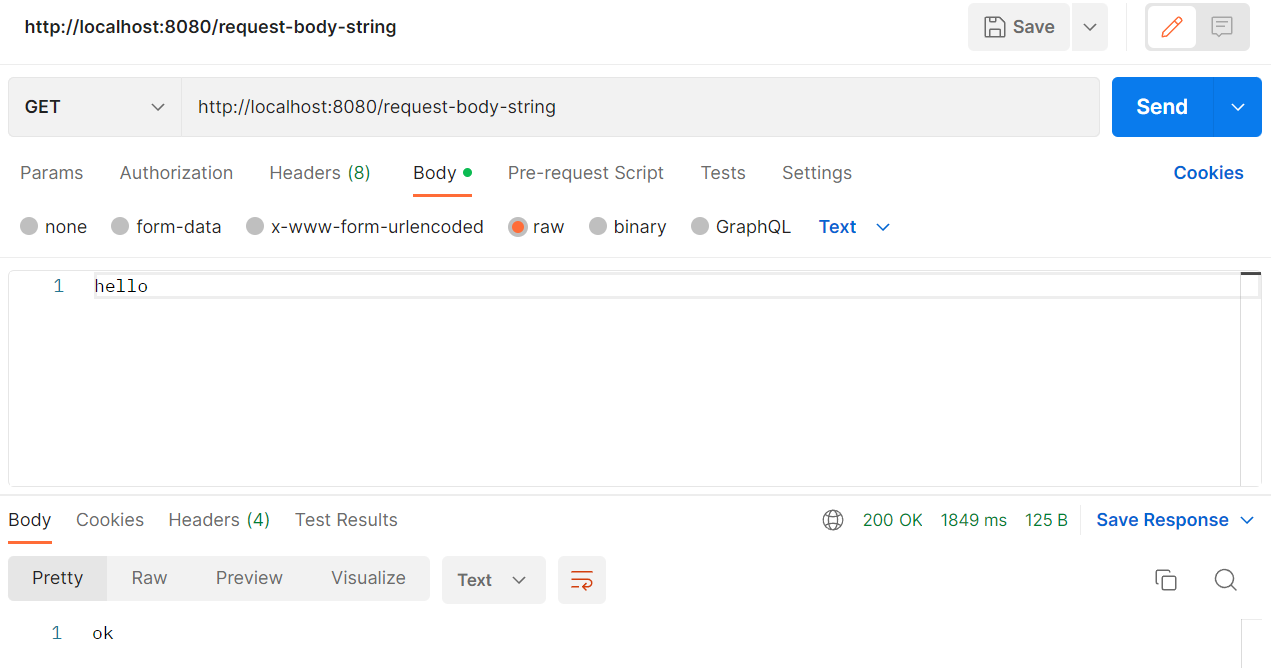

Postman을 사용해 Text를 Body에 담아 다음과 같이 Post 요청을 보내보자.

콘솔 창에서 다음과 같이 데이터가 잘 전달된 것을 확인할 수 있다.



5. HTTP 요청 데이터 - API 메시지 바디 - JSON

이번에는 JSON을 사용하여 데이터를 전달해 보겠다.

먼저 JSON 형식으로 파싱 할 수 있도록 관련 객체를 생성하자.

hello.servlet.basic.HelloData를 생성한다.

//HelloData.class
@Getter // 롬복 : 자동으로 Getter 생성
@Setter // 롬복 : 자동으로 Setter 생성
public class HelloData {
    private String username;
    private int age;
}

다음으로 hello.servlet.basic.request.RequestBodyJsonServlet을 다음과 같이 생성한다.

// RequestBodyJsonServlet.class
@WebServlet(name = "requestBodyJsonServlet", urlPatterns = "/request-body-json")
public class RequestBodyJsonServlet extends HttpServlet {

    private ObjectMapper objectMapper = new ObjectMapper();

    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        ServletInputStream inputStream = request.getInputStream();
        String messageBody = StreamUtils.copyToString(inputStream, StandardCharsets.UTF_8);
        System.out.println("messageBody = " + messageBody);

        HelloData helloData = objectMapper.readValue(messageBody, HelloData.class);

        System.out.println("helloData.username = " + helloData.getUsername());
        System.out.println("helloData.age = " + helloData.getAge());

        response.getWriter().write("ok");
    }
}



Postman을 사용해 JSON를 Body에 담아 다음과 같이 Post 요청을 보내보자.

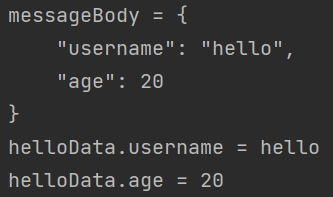

콘솔 창에서 다음과 같이 데이터가 잘 전달된 것을 확인할 수 있다.

※ JSON 결과를 파싱 하여 사용할 수 있는 자바 객체로 변환하려면 Jackson, Gson과 같은 JSON 변환
라이브러리를 추가해서 사용해야 한다. 스프링 부트로 Spring MVC를 선택하면 기본으로 Jackson
라이브러리(ObjectMapper)를 함께 제공한다.



※ HTML form 데이터도 메시지 바디를 통해 전송되므로 직접 읽을 수 있다.

하지만 더 편리한 파라미터 조회 기능(request.getParameter(...))을 제공하기 때문에 이를 사용하면 된다.



Http 응답 데이터

1. HttpServletResponse 역할

HTTP 응답 메시지 생성

  • HTTP 응답코드 지정
  • 헤더 생성
  • 바디 생성

편의 기능 제공

  • Content-Type
  • 쿠키
  • Redirect

2. HttpServletResponse - 기본 사용법

hello.servlet.basic.response.ResponseHeaderServlet을 다음과 같이 생성한다.

// ResponseHeaderServlet.class
@WebServlet(name = "responseHeaderServlet", urlPatterns = "/response-header")
public class ResponseHeaderServlet extends HttpServlet {

    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        // [status-line]
        response.setStatus(HttpServletResponse.SC_OK);

        // [response-header]
        response.setHeader("Content-Type", "text/plain;charset=utf-8");
        response.setHeader("Cache-Control", "no-cache, no-store, must-revalidate");
        response.setHeader("Pragma", "no-cache");
        response.setHeader("my-header", "hello");

        // [Header 편의 메서드]
        content(response);
        cookie(response);
        redirect(response);

        // [message body]
        PrintWriter writer = response.getWriter();
        writer.println("ok");
    }

    // Content 편의 메서드
    private void content(HttpServletResponse response) {
        //Content-Type: text/plain;charset=utf-8
        //Content-Length: 2
        //response.setHeader("Content-Type", "text/plain;charset=utf-8");
        response.setContentType("text/plain");
        response.setCharacterEncoding("utf-8");
        //response.setContentLength(2); //(생략시 자동 생성)
    }

    // 쿠키 편의 메서드
    private void cookie(HttpServletResponse response) {
        //Set-Cookie: myCookie=good; Max-Age=600;
        //response.setHeader("Set-Cookie", "myCookie=good; Max-Age=600");
        Cookie cookie = new Cookie("myCookie", "good");
        cookie.setMaxAge(600); //600초
        response.addCookie(cookie);
    }

    // redirect 편의 메서드
    private void redirect(HttpServletResponse response) throws IOException {
        //Status Code 302
        //Location: /basic/hello-form.html
        //response.setStatus(HttpServletResponse.SC_FOUND); //302
        //response.setHeader("Location", "/basic/hello-form.html");
        response.sendRedirect("/basic/hello-form.html");
    }
}

3. HTTP 응답 데이터 - 단순 텍스트, HTML

hello.servlet.web.response.ResponseHtmlServlet을 다음과 같이 생성한다.

// ResponseHtmlServlet.class
@WebServlet(name = "responseHtmlServlet", urlPatterns = "/response-html")
public class ResponseHtmlServlet extends HttpServlet {

    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        // Content-Type: text/html;charset=utf-8
        response.setContentType("text/html");
        response.setCharacterEncoding("utf-8");

        PrintWriter writer = response.getWriter();
        writer.println("<html>");
        writer.println("<body>");
        writer.println("    <div>안녕?</div>");
        writer.println("</body>");
        writer.println("</html>");
    }
}

HTTP 응답으로 HTML을 반환할 때는 content-type을 text/html로 지정해야 한다.



프로그램 실행 후 http://localhost:8080/response-html에 접속하여 보면

다음과 같이 html 파일로 잘 전달된 것을 확인할 수 있다!



4. HTTP 응답 데이터 - API JSON

이번엔 API를 응답 메시지에 담아 전달해 보겠다.

hello.servlet.web.response.ResponseHtmlServlet을 다음과 같이 생성한다.

// ResponseJsonServlet.class
@WebServlet(name = "responseJsonServlet", urlPatterns = "/response-json")
public class ResponseJsonServlet extends HttpServlet {

    private ObjectMapper objectMapper = new ObjectMapper();
    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        // Content-Type: text/html;charset=utf-8
        response.setContentType("application/json");
        response.setCharacterEncoding("utf-8");

        HelloData helloData = new HelloData();
        helloData.setUsername("cho");
        helloData.setAge(20);

        //{"username":"cho", "age":20}
        String result = objectMapper.writeValueAsString(helloData);
        response.getWriter().write(result);
    }
}

HTTP 응답으로 JSON을 반환할 때는 content-type을 application/json로 지정해야 한다.
Jackson 라이브러리가 제공하는 objectMapper.writeValueAsString()을 사용하면 객체를 JSON 문자로 변경할 수 있다.



프로그램 실행 후 http://localhost:8080/response-json에 접속하여 보면

다음과 같이 JSON이 잘 전달된 것을 확인할 수 있다!

'개발 > 스프링 MVC' 카테고리의 다른 글

(스프링 MVC 1편) 3. 서블릿, JSP, MVC 패턴  (0) 2023.03.18
(스프링 MVC 1편) 1. 웹 애플리케이션 이해  (0) 2023.03.05
    '개발/스프링 MVC' 카테고리의 다른 글
    • (스프링 MVC 1편) 3. 서블릿, JSP, MVC 패턴
    • (스프링 MVC 1편) 1. 웹 애플리케이션 이해
    용꿀
    용꿀

    티스토리툴바
